Details

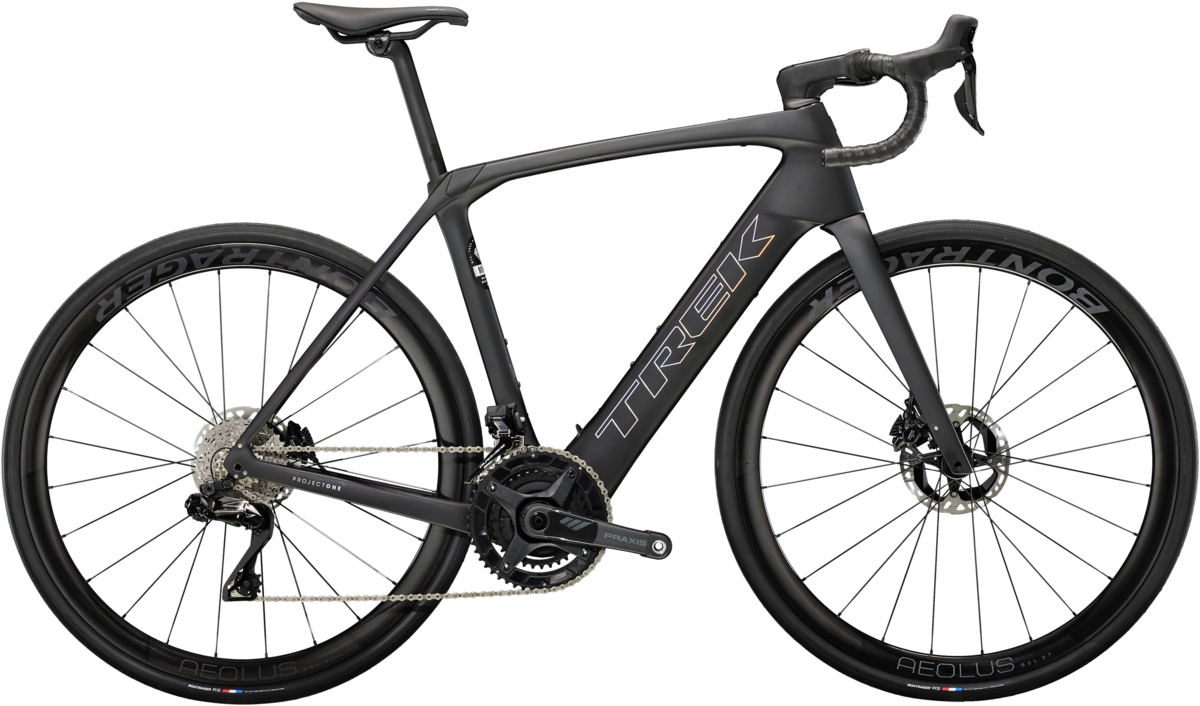

Domane+ SLR 9 is our best category-redefining, high-speed assist carbon e-road bike that doesn't look, fit, or feel like a standard e-bike. It's built on an 800 Series OCLV Carbon frame that hides a compact and refined motor to elevate your ride with natural-feeling assist. The motor quietly blends in with the elements, all but disappearing under you on peaceful solo spins and club rides, so you stay more connected to the experience while enjoying extra power for crushing climbs and long, epic adventures. Adding the cherry on top, it's equipped with the most premium parts the industry has to offer, like Shimano's top-tier wireless electronic drivetrain-Dura-Ace Di2.
- The TQ harmonic pin ring motor is impressively discreet, compact, light, whisper-quiet, and offers a powerful assist up 28mph
- The smart charge port, sleek integrated display, and discreet controls keep the bike looking and feeling like a traditional road bike
- Stable endurance geometry partners with road-smoothing rear IsoSpeed that absorbs bumps in the road for a smoother, more comfortable ride
- On long rides, you can add on a Range Extender that fits neatly in the bottle cage and gives you the power you need to go the extra distance
- It comes equipped with a 2x Shimano drivetrain and fast 32mm tires for the pavement, but can fit up to 40mm tires when you want more off-road versatility
Size | 50 | 52 | 54 | 56 | 58 | 60 | 62 |
---|---|---|---|---|---|---|---|
BB Drop (cm) | 8 | 8 | 8 | 7.8 | 7.8 | 7.5 | 7.5 |
Chainstay Length (cm) | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
Eff. Top Tube (cm) | 51.9 | 53 | 54.2 | 55.4 | 56.7 | 57.9 | 59.3 |
Frame Reach (cm) | 36.8 | 37.1 | 37.4 | 37.7 | 38 | 38.3 | 38.6 |
Frame Stack (cm) | 54.6 | 56.1 | 57.5 | 59.1 | 61.1 | 63.2 | 65.6 |
Head Angle | 71.1° | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° | 72.1° |
Head Tube Length (cm) | 13 | 14.5 | 16 | 17.5 | 19.5 | 22 | 24.5 |
Offset (cm) | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 | 4.8 |
Seat Tube (cm) | 45 | 47.5 | 50 | 52.5 | 54.8 | 56.7 | 58.6 |
Seat Tube Angle | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
Standover (cm) | 72.8 | 74.7 | 76.6 | 78.8 | 80.8 | 82.9 | 84.7 |
Trail (cm) | 6.3 | 6.2 | 6.2 | 6.3 | 6.3 | 6.2 | 6.2 |
Wheelbase (cm) | 100.7 | 101.3 | 102.1 | 101.8 | 102.7 | 103.7 | 104.7 |
Size | Height (inches) | Height (cm) |
---|---|---|
50 | 5'2" - 5'4" | 158 - 163cm |
52 | 5'4" - 5'6" | 163 - 168cm |
54 | 5'6" - 5'9" | 168 - 174cm |
56 | 5'9" - 5'11" | 174 - 180cm |
58 | 5'11" - 6'1" | 180 - 185cm |
60 | 6'1" - 6'3" | 185 - 190cm |
62 | 6'3" - 6'5" | 190 - 195cm |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
Frame | 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle |
---|---|
Fork | Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Wheels |
Front: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle Rear: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
Tires | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c |
Crankset | Praxis Carbon |
Chainrings | Praxis, 50/34T, 12 speed |
Shifters | Shimano Dura-Ace R9270 Di2, 12 speed |
Front Derailleur | Shimano Dura-Ace R9250 Di2, braze-on, down swing |
Rear Derailleur | Shimano Dura-Ace R9250 Di2, 34T max cog |
Cassette/Freewheel | Shimano Dura-Ace R9200, 11-34, 12 speed |
Chain | Shimano Dura-Ace/XTR M9100, 12 speed |
Rotors | Shimano MT900, centerlock, 160mm |
Handlebars | Bontrager Pro IsoCore VR-SF |
Tape/Grips | Bontrager Supertack Perf tape |
Stem | Bontrager RCS Pro, -7 degree |
Seatpost | Domane carbon seatpost, KVF2 shaping, 20mm offset |
Saddle | Bontrager P3 Pro, short nose |
Pedals | Sold Separately |
Motor | TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
Battery | TQ 360Wh |
Controller/Display | TQ LED display with Bluetooth & ANT+ connectivity |
Charger | TQ 4A charger |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Matte Trek Black / 50cm | 601842880968 | 5299100 | DOM28711984K |
Matte Trek Black / 52cm | 601842880951 | 5299101 | DOM28532884K |
Matte Trek Black / 54cm | 601842880944 | 5299102 | DOM28617325K |
Matte Trek Black / 56cm | 601842880937 | 5299103 | DOM28576557K |
Matte Trek Black / 58cm | 601842880920 | 5299104 | DOM2869246K |
Matte Trek Black / 60cm | 601842880913 | 5299105 | DOM28997602K |
Matte Trek Black / 62cm | 601842880906 | 5299106 | DOM28710812K |
Deep Smoke / 50cm | 601842853016 | 5274713 | DOM28376611E |
Deep Smoke / 52cm | 601842853009 | 5274714 | DOM28879061E |
Deep Smoke / 54cm | 601842852996 | 5274715 | DOM28602397E |
Deep Smoke / 56cm | 601842852989 | 5274716 | DOM2362269E |
Deep Smoke / 58cm | 601842852972 | 5274717 | DOM28714247E |
Deep Smoke / 60cm | 601842852965 | 5274718 | DOM28119227E |
Deep Smoke / 62cm | 601842852958 | 5274719 | DOM2854310E |
Carbon Red Smoke / 50cm | 601842852873 | 5274729 | DOM2844638E |
Carbon Red Smoke / 52cm | 601842852866 | 5274730 | DOM28422611E |
Carbon Red Smoke / 54cm | 601842852859 | 5274731 | DOM28423698E |
Carbon Red Smoke / 56cm | 601842852842 | 5274732 | DOM28982621E |
Carbon Red Smoke / 58cm | 601842852835 | 5274733 | DOM28567181E |
Carbon Red Smoke / 60cm | 601842852828 | 5274734 | DOM28946016E |
Carbon Red Smoke / 62cm | 601842852811 | 5274735 | DOM28565267E |
Crystal White / 50cm | 601842852941 | 5274721 | DOM26776294E |
Crystal White / 52cm | 601842852934 | 5274722 | DOM26576267E |
Crystal White / 54cm | 601842852927 | 5274723 | DOM26124647E |
Crystal White / 56cm | 601842852910 | 5274724 | DOM26662626E |
Crystal White / 58cm | 601842852903 | 5274725 | DOM26242650E |
Crystal White / 60cm | 601842852897 | 5274726 | DOM26436249E |
Crystal White / 62cm | 601842852880 | 5274727 | DOM26816978E |
Juniper / 50cm | 768682567203 | 5290535 | DOM21152366R |
Juniper / 52cm | 768682567463 | 5290536 | DOM21838327R |
Juniper / 54cm | 768682567487 | 5290537 | DOM21780428R |
Juniper / 56cm | 768682567340 | 5290538 | DOM21178828R |
Juniper / 58cm | 768682567302 | 5290539 | DOM21981812R |
Juniper / 60cm | 768682567500 | 5290540 | DOM21285776R |
Juniper / 62cm | 768682567425 | 5290541 | DOM21451054R |
Mercury / 50cm | 601842852804 | 5274737 | DOM21139246Y |
Mercury / 52cm | 601842852798 | 5274738 | DOM21171032Y |
Mercury / 54cm | 601842852781 | 5274739 | DOM21628958Y |
Mercury / 56cm | 601842852774 | 5274740 | DOM2191268Y |
Mercury / 58cm | 601842852767 | 5274741 | DOM21395503Y |
Mercury / 60cm | 601842852750 | 5274742 | DOM21746405Y |
Mercury / 62cm | 601842852743 | 5274743 | DOM21597293Y |
